COMFORTABLE CABIN PROVIDING PERFECT VIEWS
The main difference compared to previous models is that the seats are located next to each other in a comfortably spacious cockpit.
The CH-77 Ranabot is ideal for romantic flights or business trips.
The brand new CH-77 Ranabot builds on the 18 years of tradition of the CH-7 Kompress model.
The CH-77 Ranabot ultralight helicopter is not just an amazing “toy for big boys”, but also a timeless means of transport.
With a range of 480 km, it can fly across the entire Czech Republic from east to west in less than 3 hours.
Its maximum speed is up to 209 km/h.
The main difference compared to previous models is that the seats are located next to each other in a comfortably spacious cockpit.
The CH-77 Ranabot is ideal for romantic flights or business trips.
The helicopter can be painted any colour you wish.
Your corporate colours will look great on your helicopter.
Or perhaps you want to match the colour of the seats to your favourite leather jacket? We can do that, too!
VIEW ACCESSORIESWe service all the helicopters we sell, both during and after the warranty period.
Our technicians rank among the best, as evidenced by our appointment as an officially authorised service centre of the Robinson Helicopter Company in 2014.
They have already produced over 107 ULL helicopters.
They have logged more than 80,000 hours without engine failure or key component failure.
Price list for CH77 RANABOT and its elements

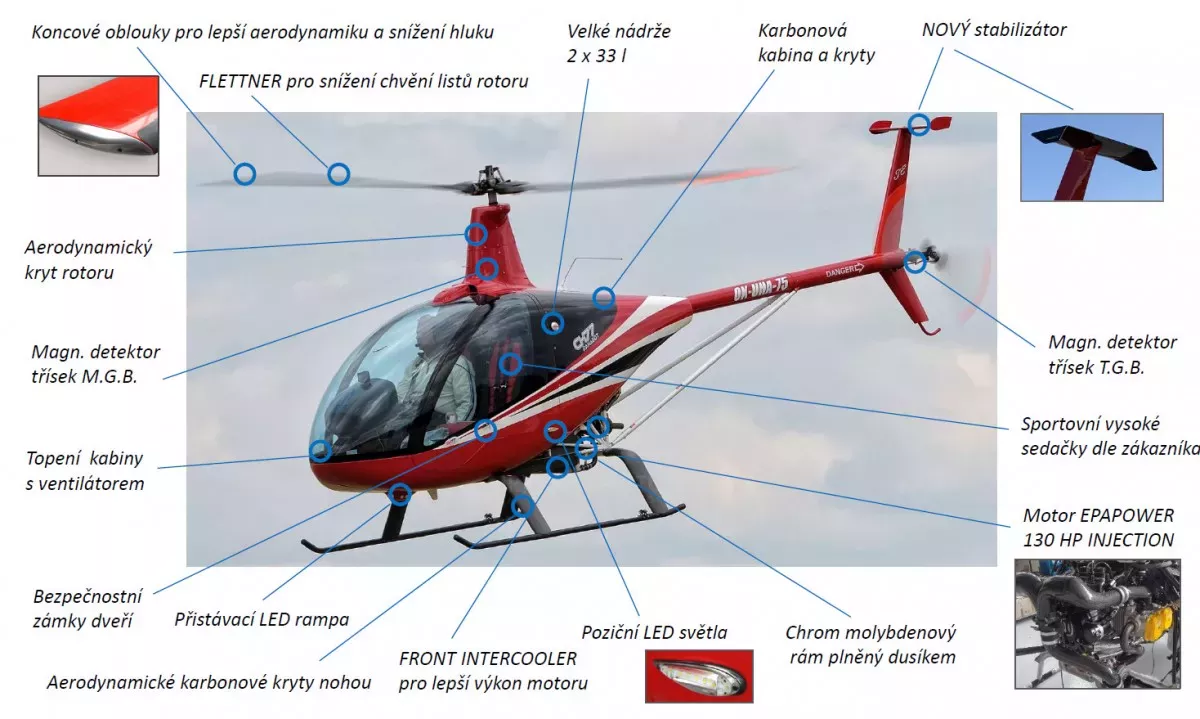

BASIC EQUIPMENT RANABOT CH77 includes all variants:
Chromium-molybdenum nitrogen filled helicopter frame, main MONO radiator and oil exchanger, INTERCOOLER FRONT, main gearbox with rotor and blades, cooling system, two plastic tanks 2 x 33 l, carbon cabin with doors, rear engine covers, top aerodynamic rotor cover, two fabric seats, control panel with main flight instruments (without radio and transponder), EPA POWER SA-R917 Ti - 130 HP engine, MOTEC controller with 5" display, forward TRIM lever cyclics, landing gear and rear gearbox with blades.
Design: CH77 RANABOT BASIC
Two-layer sprayed helicopter in desired colour
Radio station Dittel - KRT2 (8,33) + antenna
Vertical compass
Safety door lock set (three-point closing)
INTERCOLLER (charge air intercooler)
Price: 251.146,- Euro excluding VAT
Design :CH 77 RANABOT ADVANCED
Two-layer sprayed helicopter in desired colour
Graphic designs of the helicopter according to the customer's requirements
Radio station Dittel - KRT2 (8,33) + antenna
TRIG TT21 transponder + antenna
USB socket 12 V (for GPS, mobile phone)
Vertical compass
Round ventilation windows 2 pcs
Position LED lights - side
Carbon storage pocket next to the pilot (mobile phone, notebook, maps...)
Aerodynamic cover for upper rotor shaft
Aerodynamic drops at the end of the main rotor blades
Flettners (to reduce vibration of the main rotor blades)
Storage net on the instrument panel console
Cabin thermal and noise insulation
Door safety lock set (three-point closing)
INTERCOLLER (charge air intercooler)
Double handling castors
Price: 258.800,- Euro excluding VAT
Design :CH 77 RANABOT PREMIUM
GlasCocpit-EPAPower 917Ti 150HP
Two-layer helicopter spray in desired colour
Graphic designs of the helicopter according to the customer's requirement
Radio station Dittel - KRT2 (8,33) + antenna
TRIG TT21 transponder + antenna
USB socket 12 V (for GPS, mobile phone)
Vertical compass
Round ventilation windows 2 pcs
Position LED lights - side
Landing XEON ramp - lights
Capacitive fuel gauge including analogue display
Hot water heater with fan
High upholstered leather seats 2 pcs (according to customer's colour)
Storage 2 pockets in the cabin (behind the head)
Carbon storage pocket next to the pilot (mobile phone, notebook, maps...)
Set of rugs with embroidery
Aerodynamic cover for upper rotor shaft
Aerodynamic drops at the end of the main rotor blades
Flettners (to reduce the vibration of the main rotor blades)
Storage net on instrument panel console
Cabin thermal and noise insulation
Door safety lock set (three-point closing)
TM 290 charger - including installation of the connection on the helicopter
INTERCOLLER (intercooler for charge air)
Double handling castors
BOSE headphone holders /2 pcs)
Parking sun visor (reduces cockpit temperature in the sun by 50%)
Cockpit sunshade (to prevent unpleasant glare during flight)
Side TRIM
Glass cockpit with Kanardia Nessis III 8.4" navigation
Headphones BOSE A30 BT 2 pcs
Rotax EPA POWER 917Ti 150 HP engine - extra charge for increased power
Price: 278.128,- Euro without VAT
The individual variants can be adapted and retrofitted on customer's request
Price list valid from 2/2024 / subject to price changes according to delivery conditions of individual components.
Youtube video
Youtube video
Youtube video
Youtube video
Two seats side by side
Cruising speed 160 km / 87 kn
Maximum speed 209 km/h / 110 kn
Maximum weight 450/550 kg
Empty weight 280 kg
Carrying capacity 170/220 kg
Tanks 2 x 33.5 l / 8.8 US gal
Motor Rotax 914, EPA POWER SA-914-1400
Rotax EPA POWER 917Ti 150 HP
Specific power ( HP / kg MOTW ) 0,236 / 0,272
Fuel consumption 15–18 l/h
Total length 7,240 mm/23.75 ft
Total height 2,470 mm/8.1 ft
Main rotor diameter 6,279 mm/20.5 ft
Range 480 km/259 Nm
Endurance 3 hours
Service ceiling 4,800 m / 15,700 ft (altitude)
Hovering ceiling 2,750 m / 9,000 ft
Rate of climb 7.5 m/sec
